Sterile barrier integrity testing is a non-negotiable part of medical device packaging validation, but knowing which test method to use, and when, isn’t always straightforward. Two of the most common methods are bubble leak testing and dye leak testing. While some manufacturers default to one without fully understanding the other, both serve important and distinct purposes. With the help of Jaki Hayes, Packaging Engineer at PCL, we’ll break down the differences between the two and help you determine which approach, or combination of approaches, is right for your next validation.
What Is Bubble Leak Testing?
Bubble leak testing is a method used to evaluate the integrity of an entire package. During the test, the package is submerged in water and inflated to a predetermined internal pressure. Any breach in the package will produce a steady stream of bubbles at the failure site.
This test is designed to catch significant failures that could compromise the sterile barrier. Because the test requires entry into the package to supply internal air pressure, it is considered a destructive test.
Bubble leak testing can be performed on both porous and non-porous packaging and supports pouches, trays, and other common medical device packaging configurations.
What Is Dye Leak Testing?
Dye leak testing is a method focused specifically on seal integrity. Rather than evaluating the package as a whole, this test targets the seal area to identify channels, incomplete seals, or other seal defects that could allow for any kind of ingress.

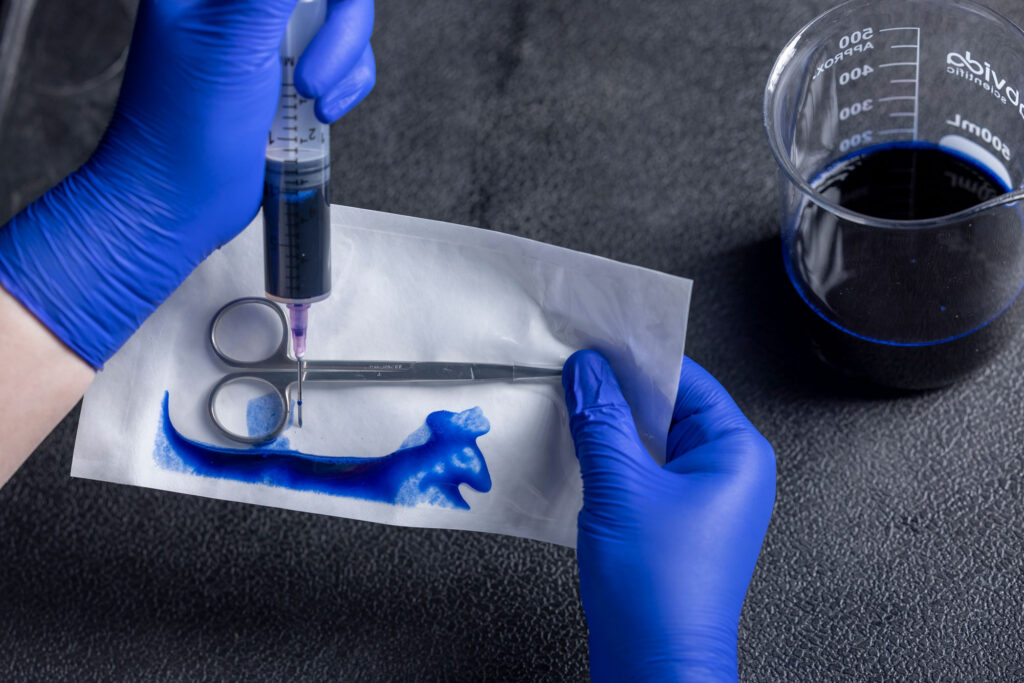

The procedure involves injecting enough dye into the package to cover the longest seal edge. The seal area is then visually examined for dye leaks across the seal width. Each seal is observed for no more than five seconds. Exceeding this time can cause wicking, which may be mistaken for a true failure. Channels in the seal are typically detectable within that five second window. Like bubble leak testing, dye leak is also destructive.
There are multiple methods for performing dye leak testing to accommodate different packaging types:
- Edge dip method
- Injection method
The detection threshold for dye leak is approximately 50 microns, making it more sensitive to smaller defects.
Key Similarities and Differences
Both tests share some important characteristics:
- Both are destructive — tested samples cannot be reused
- Both are attribute tests — results are pass/fail, not continuous measurements
- Both are applicable to pouches and trays
- Both have versions for porous and non-porous packaging
Where they differ is in focus and sensitivity:
When Should You Use Each Method?
Choosing between dye leak and bubble leak testing comes down to what question you’re trying to answer and at what stage of your validation you’re at. Dye leak testing is the right choice when seal quality is your primary concern. If you have a history of seal-related failures, are actively validating a seal process, or are working through Performance Qualification (PQ) testing to confirm that your sealing parameters are producing consistently good seals, dye leak gives you the seal-specific view you need to catch channels or incomplete seals early.
Bubble leak testing is the better fit when your concern extends beyond the seals to the package as a whole. It’s most commonly used during Design Verification (DV) testing to confirm that the package design can hold up under real-world conditions, including the stresses of handling, transportation, aging, and distribution.
For most medical device packaging validations, the answer isn’t one or the other, it’s both. Dye leak and bubble leak testing are designed to work together. Together, they provide comprehensive evidence of sterile barrier integrity, which is exactly what a complete validation strategy requires.
Sample Size
Sample sizes for both methods are driven by risk assessment and statistical rationale, aligned with your validation objective and the level of statistical confidence required. Because both tests are attribute (pass/fail) inspections, the sample size calculations are comparable between the two methods.
For example, if a study is being conducted at 95% confidence and 95% reliability, the required sample size would be N=59 with zero failures allowed, regardless of which test method is being used.
Key Takeaways
Dye leak and bubble leak testing are complementary tools, not competing ones. At different stages of development, different tests offer different value:
- Dye leak gives you a close look at your seals during performance qualification.
- Bubble leak gives you a broad view of package integrity during design verification.
For most medical device packaging validations, using both tests as part of a comprehensive validation strategy is the preferred approach.
