When a new device goes to market it will experience many environmental hazards. Dust drifts into vents and rain finds its way past seals. Ingress Protection (IP) testing exists to answer the question that every device manufacturer cares about, can this device hold up against real world hazards? With the help of Christian Helgeson, Test Engineer here at PCL, we’ll walk through what IP testing is, how it is performed, and why it has become a non-negotiable step for so many device manufacturers.
What is Ingress Protection Testing?
Ingress Protection testing is a standardized test method used to evaluate how effectively a device prevents external elements, mainly solid particles and water, from entering the device. The test produces a two-digit IP rating that explains the level of protection a product has against solids and liquids. IP testing is typically conducted later in the product development cycle, once the initial device design is finalized.
Manufacturers pursue IP testing for more than compliance alone. A verified rating gives manufacturers objective evidence that a product will perform safely and reliably in its intended use environment.
Physical Ingress: Testing Against Solids
Testing for solid particles begins with larger objects and works toward smaller ones, ending with a fine dust capable of slipping through the smallest gaps in a seam or vent. The test begins with the use of calibrated probes that represent hands, fingers, tools and wires, confirming that users cannot reach hazardous components even if they try. Ultimately, the highest rating is tested with an ultra-fine dust is circulated in a sealed chamber.
The underlying goal across each stage is to determine whether anything from the outside can enter the device enclosure, interfere with its functionality, or create a pathway to internal components that could pose a hazard to the user.
Water Ingress: Testing Against Liquids

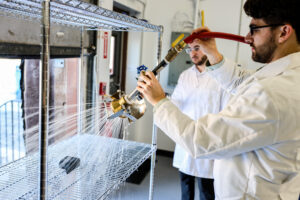

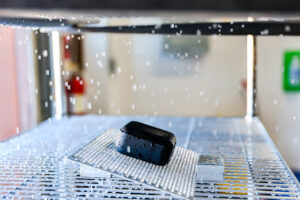

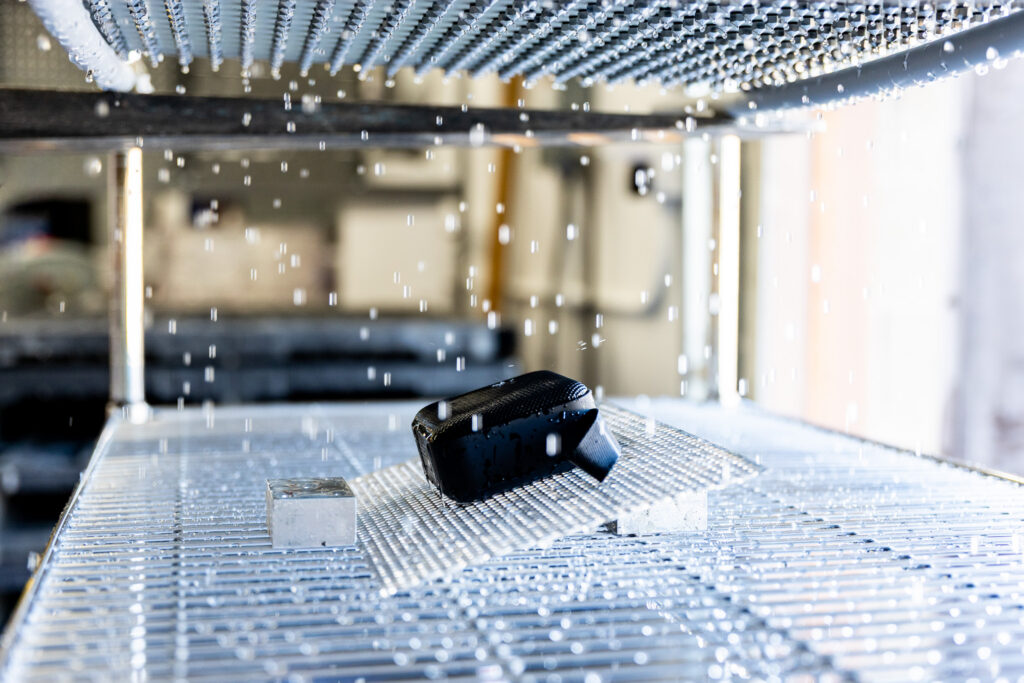

Water testing varies dramatically in intensity depending on the IP rating a device is targeting. At the lightest end of the spectrum, a device may simply be placed beneath a slow drip meant to simulate condensation or light rain. For more intense testing, spray nozzles are used with flow rates that commonly reach 12.5 liters per minute for standard jet testing and can ramp up to 100 liters per minute for high-pressure testing. Certain ratings require the device to be fully submerged in water. This is meant to simulate accidental drops into sinks, puddles, or deeper bodies of water up to 1 meter in depth.
Each level represents a different severity, and each is designed to approximate a real scenario the product is likely to encounter. A fitness tracker worn in the shower faces a very different challenge than a control panel cleaned with a pressure washer, and the IP rating system is built precisely to distinguish between these instances.
What Counts as a Failure?
Criteria for failures depends heavily on the client and the intended application, but the logic behind them is consistent. In the most severe case, any measurable water or dust ingress is grounds for failure, regardless of whether the device continues to operate. In more lenient cases, a small amount of ingress is acceptable so long as it does not interfere with device functionality. Solid ingress tests ensures that the user will not encounter hazardous internal parts and water ingress tests are intended to keep electrical components away from any water that may enter the device.
Common Challenges and Failures
IP testing has a way of exposing the weakest points in the device design, often in places that would’ve been overlooked on paper. Sealing weaknesses are one of the most common points of failure. Airflow pathways are another common source of trouble, especially in devices that rely on a fan for active cooling. A fan built to push hot air out can just as easily pull dust in from other openings.
Are Manufacturers Targeting Specific IP Ratings?
Most manufacturers do have a target rating in mind, often driven by regulatory requirements, customer expectations, or competitive pressure from similar products already on the market. Testing strategies to reach that target, however, vary considerably. Some teams begin with less intense tests to gather data and build confidence before committing to a full certification run, using early results to guide design tweaks. Others go straight to worst-case conditions, particularly for high-risk devices where any ambiguity in performance is unacceptable.
What Types of Devices Require IP Testing?
How Many Samples Are Needed?
Testing can technically be performed on a single unit. Oftentimes, fewer than ten units are tested in total, and each one must be representative of a potential final device design.
In certain cases, only specific components of a product are tested. Earbuds, for example, may be evaluated independently of their charging case when the charging case is not intended for outdoor use. Deciding what to test, and at what configuration, is an important part of IP testing.
Why is IP Testing Important?
At its core, IP testing is about assurance. It provides assurance that the device will not fail when exposed to the conditions it is likely to encounter in the field, assurance that it will not pose a safety hazard to users if exposure does occur, and assurance for manufacturers that they can confidently market claims about reliability and performance. That assurance is critical for life-saving medical devices and for equipment intended for harsh or unpredictable environments, but it carries weight across every product category.
Key Takeaways
IP testing evaluates how well a device resists the two of the most common environmental threats, dust and water. Failure is not only defined by whether materials enter the enclosure, but by whether or not that entry affects functionality or creates a safety risk for users.
Testing is especially critical for medical devices, portable equipment, and any product that will be exposed to unpredictable environments. Ultimately, IP testing is about more than passing a standard. It is about making sure devices perform safely and reliably when it matters most.
